Custom Industrial Control Panel Overlay: Laser Engraving, UV Printing and CNC Cutting

The industrial control panel overlay is a fully technical component in its own right: it identifies control elements, carries safety legends and must remain legible throughout the entire service life of the equipment. Permanent laser engraving, high-definition UV printing, CNC cutting to drawing — every custom control panel faceplate is manufactured to the exact geometry of the enclosure, with documented reproducibility to support maintenance and fleet revision programmes.
Show more...
Get a quote
  • Quote within 4h
  • Dedicated account manager
  • Made in Europe
Custom Industrial Control Panel Overlay: Laser Engraving, UV Printing and CNC Cutting
Custom Industrial Control Panel Overlay: Laser Engraving, UV Printing and CNC Cutting-thumbnail
Custom Industrial Control Panel Overlay: Laser Engraving, UV Printing and CNC Cutting-thumbnail
Custom Industrial Control Panel Overlay: Laser Engraving, UV Printing and CNC Cutting-thumbnail
Custom Industrial Control Panel Overlay: Laser Engraving, UV Printing and CNC Cutting-thumbnail
Control panel overlay applications
Applications

From production lines to medical equipment: where the control panel overlay is essential

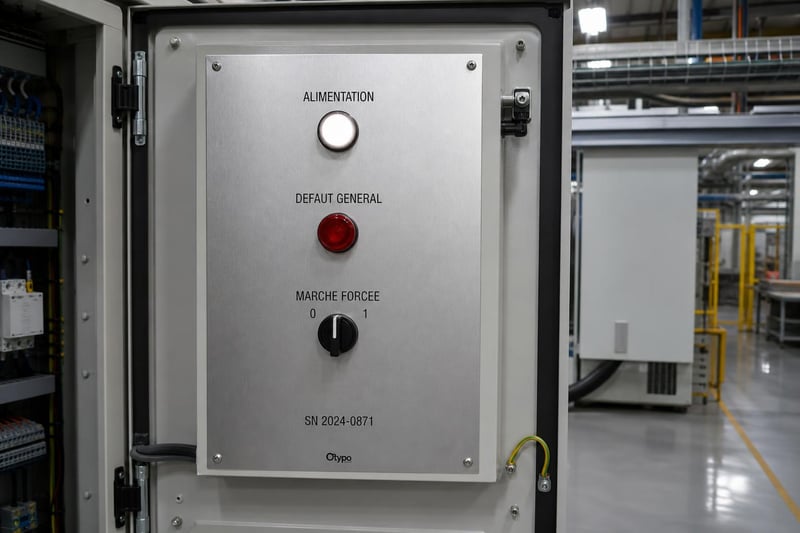

The control panel overlay is integrated into industrial automation systems, dashboards in food and pharmaceutical production, supervision equipment in energy and petrochemical facilities, as well as test benches and medical devices. Wherever an operator interacts with a machine, the legibility and durability of the marking are critical to safety.

Control panel overlay manufacturing process
Control panel overlay production

Laser engraving, UV printing and CNC milling combined on a single part

The quality of an HMI control panel overlay depends on the precision with which each process is executed. Engraving, printing and cutting can be combined on the same part to meet distinct functional requirements across different zones.

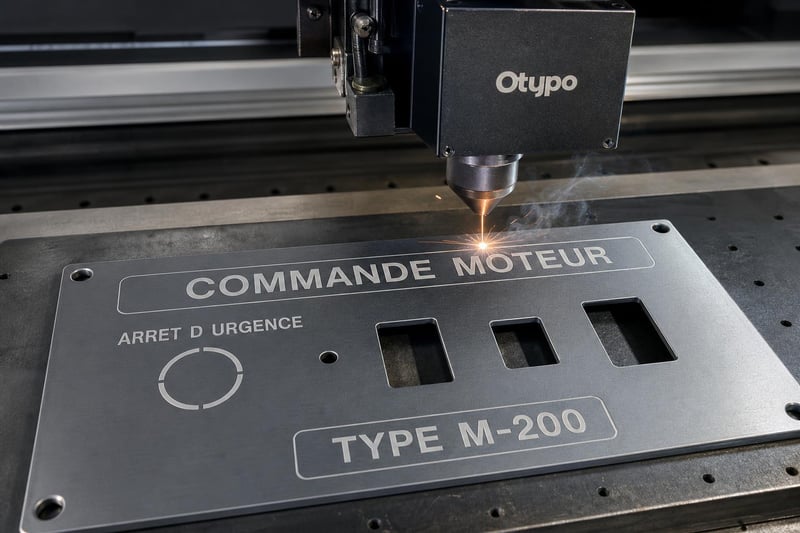

  • Laser engraving: permanent marking resistant to solvents and abrasion
  • Full-colour UV printing: pictograms, safety colours and visual reference marks
  • CNC cutting: drillings, display windows and notches positioned to exact dimension
  • Anodised aluminium or polycarbonate: structural rigidity and chemical resistance
Take action

Let us produce the signage for you.

Send us your plans or your specifications. Our design office analyses your requirements and sends you a bespoke commercial proposal within 4 to 8 working hours.

Get a quote

Can custom drillings and cut-outs be incorporated into an industrial control panel overlay?

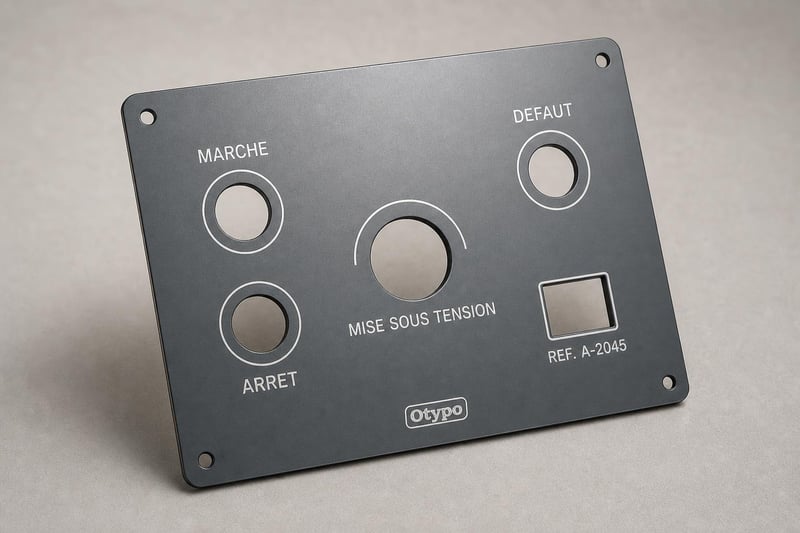

Yes. Every control panel overlay is machined to the enclosure drawing: drillings for pushbuttons and pilot lights, windows for displays, notches for connectors. CNC cutting and laser cutting allow each aperture to be positioned to dimension, with a precision of one tenth of a millimetre across all geometries.

What is the difference between an engraved and a printed control panel overlay?

Laser engraving cuts into the material — the marking is permanent, unaffected by wear and solvents, even in abrasive environments. UV printing deposits a polymerised ink on the surface, which allows full-colour reproduction and complex pictograms. Both processes can be combined on the same part according to the functional zones required.

How is reproducibility guaranteed when ordering a replacement overlay several years later?

The vector production file or technical drawing is retained. Using that same file, the same material and the same process, the replacement part is identical to the original — geometry, colours and marking included. This documented reproducibility is essential for fleet maintenance and compliance audits.

Which materials are suitable for a control panel overlay exposed to chemicals or frequent cleaning?

Anodised aluminium and treated polycarbonate resist common solvents, greases and industrial cleaning agents. The choice of material depends on the nature of the chemical agents present and the frequency of exposure. A preliminary technical discussion allows the most appropriate solution for the operating environment to be confirmed.

Is it possible to order control panel overlays in small quantities for a fleet replacement or machine overhaul?

Yes. Laser and UV printing processes are well suited to small runs without prohibitive set-up costs. Orders ranging from a few parts to several hundred units are handled with the same level of rigour regarding cutting precision, marking quality and geometric conformity to the original drawing.

Choosing the right material for an industrial control panel overlay

Anodised aluminium, polycarbonate and stainless steel: distinct properties

Anodised aluminium remains the reference material for industrial control panel overlays: it combines structural rigidity, corrosion protection and compatibility with both laser engraving and UV printing. Treated polycarbonate offers excellent resistance to impact and chemical agents, making it suitable for environments where mechanical shocks are frequent. Stainless steel is the preferred choice in food processing and pharmaceutical sectors, where high-pressure washdowns and aggressive disinfectants are commonplace.

The backing plate and faceplate combination: a common industrial solution

For enclosures subject to high mechanical stress, combining a structural backing plate with a finish faceplate separates the rigidity function from the marking function. Each layer is optimised for its specific role, improving the overall durability of the assembly and making it easier to replace the faceplate without dismantling the enclosure.

Engraving, printing, milling: which process for which requirement

Permanent marking or colour rendering: complementary approaches

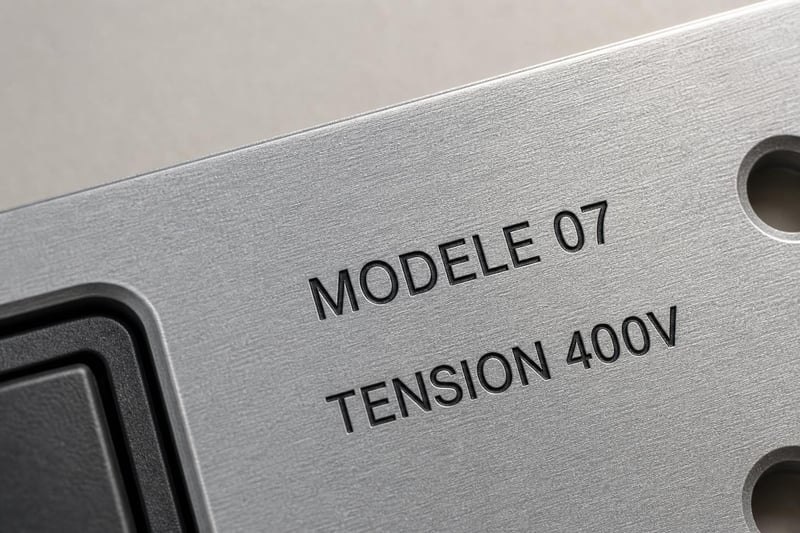

Laser engraving cuts into the material with a precision of around one tenth of a millimetre. The resulting marking is permanent: neither mechanical wear, nor industrial solvents, nor UV exposure will degrade it. It is the preferred process for control legends, serial numbers and safety references that must remain legible throughout the entire service life of the equipment.

UV printing and CNC milling for complex geometries

High-definition UV printing enables full-colour reproduction on metals and polymers without the need for screen printing on small runs. CNC milling takes over for thicker materials and complex geometries: precision-diameter drillings, rectangular display windows, grooves for seals. These three processes can be combined on a single control panel overlay according to the functional zones required.

Integrating traceability directly into the control panel overlay

DataMatrix code, serial number and version reference: data carried by the part itself

Traceability of industrial equipment increasingly relies on identifiers integrated into the part itself. A DataMatrix code engraved or printed on the control panel overlay physically links the equipment to its technical documentation, maintenance history and software version. Unlike an adhesive label, this marking cannot peel off, does not degrade and remains legible even after years of operation in demanding environments.

Meeting documentary tracking requirements without adding an additional component

In the energy, medical and regulated industrial sectors, traceability obligations require permanent, non-modifiable identification of each piece of equipment. Integrating this data directly into the engraved control panel overlay simplifies the documentation chain and reduces the risk of error during audits or maintenance operations.

Maintenance and replacement: planning for reproducibility

Retaining the production file: the guarantee of an identical replacement part

A damaged, illegible or worn control panel overlay must be replaced on a like-for-like basis to avoid disrupting operators or causing handling errors. Retaining the production file — vector or technical drawing — allows production to be relaunched using the same parameters: same material, same process, same geometry. We regularly find that industrial customers underestimate this requirement at the time of the initial order, only to face difficulties when carrying out a fleet revision.

Small replacement runs: the same standard as the original series

Laser and UV printing processes do not require set-up costs proportional to quantity. An order for a control panel overlay for an electrical enclosure in a handful of units benefits from the same level of drilling precision, the same marking quality and the same geometric conformity as the original production run. This is an operational requirement for maintenance teams working across heterogeneous machine fleets.

Control panel overlays and operator safety: what the marking must guarantee

Legibility, contrast and resistance to fading: non-negotiable requirements

The requirements for marking of machinery and industrial equipment — including those set out under BS EN ISO standards — stipulate that control element legends must be legible, permanent and unambiguous. Insufficient contrast, a faded legend or a degraded pictogram can lead to handling errors with serious consequences. Paint-filled laser engraving and polymerised UV printing meet these legibility requirements under all lighting conditions, including low-light environments.

The preventive role of the control panel overlay in reducing operator error

Having supported hundreds of industrial projects, we consistently observe that the quality of the HMI control panel overlay directly influences the operator error rate during commissioning and shift changeovers. A clear visual hierarchy, stable safety colours and deeply engraved legends reduce the operator's cognitive load and contribute to incident prevention. The control panel overlay is not a cosmetic finish: it is a safety-critical tool in its own right.
