Custom Engraved Rulers for Industry: Bespoke Graduation and Permanent Marking

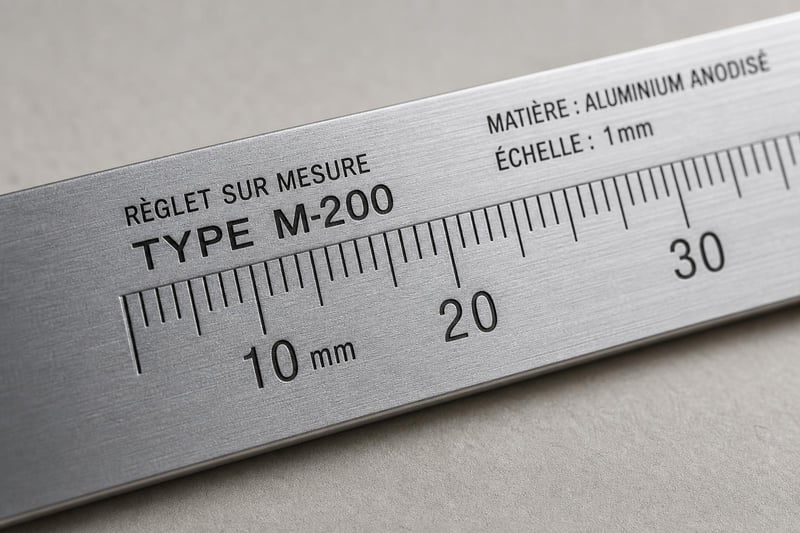

The custom engraved ruler is a graduated marking tool designed for industrial environments: graduation tailored to your internal dimensions, permanent marking by laser engraving or CNC milling, integration of logos, workstation codes or pictograms. Available in stainless steel, anodised aluminium or engineering plastic, it combines dimensional precision with lasting legibility — even when exposed to solvents, oils and frequent cleaning.
Show more...
Get a quote
  • Quote within 4h
  • Dedicated account manager
  • Made in Europe
Custom Engraved Rulers for Industry: Bespoke Graduation and Permanent Marking
Custom Engraved Rulers for Industry: Bespoke Graduation and Permanent Marking-thumbnail
Custom Engraved Rulers for Industry: Bespoke Graduation and Permanent Marking-thumbnail
Custom Engraved Rulers for Industry: Bespoke Graduation and Permanent Marking-thumbnail
Custom Engraved Rulers for Industry: Bespoke Graduation and Permanent Marking-thumbnail
Custom engraved ruler applications
Applications

From Dimensional Control to Workstation Identification

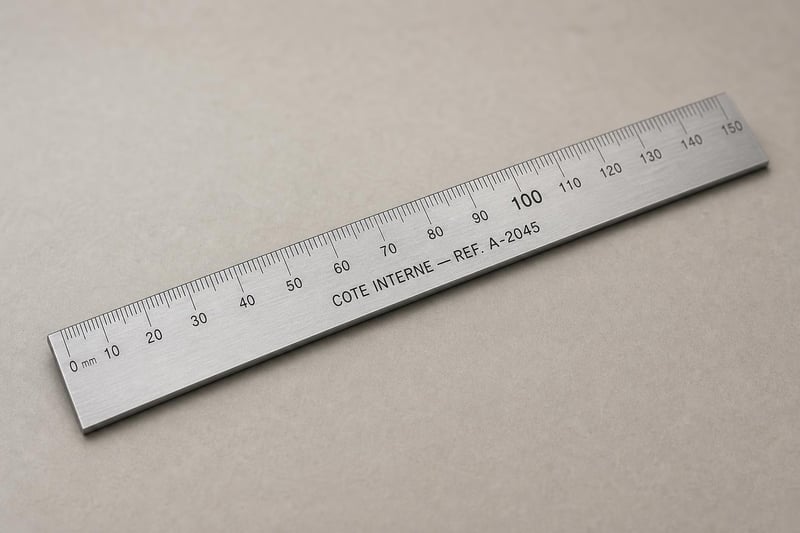

In industry, a standard ruler is rarely sufficient: graduation that does not match internal dimensions, a format incompatible with existing jigs, no marking at all. A custom industrial ruler carries the exact graduation of your internal dimensions and incorporates workstation codes, workshop logos or zone markers — eliminating reading errors on the production line.

Custom engraved ruler process
Custom engraved ruler production

Laser Engraving, UV Printing, CNC Milling: the Process That Determines Service Life

The choice of marking process directly determines the long-term legibility of the ruler. Laser engraving recesses the marking into the material — no fading is possible under friction or solvents. UV printing and CNC milling complement the range according to finish requirements and environment.

  • Laser engraving: permanent marking, precision to 0.08 mm, solvent resistance
  • UV printing: colours, logos and pictograms on aluminium, protected indoor use

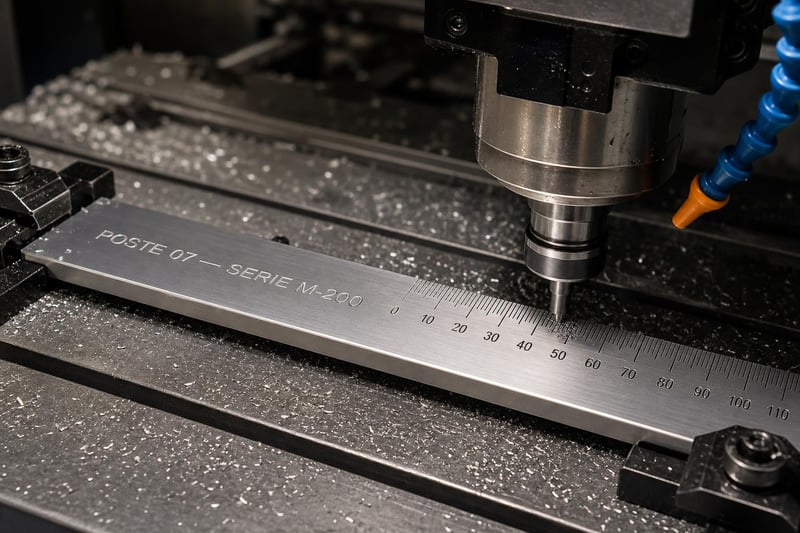

  • CNC milling: raised graduation on solid aluminium or brass, maximum contrast
  • Ink-free stainless steel: recommended solution for chemical and regulated environments
Take action

Let us produce the signage for you.

Send us your plans or your specifications. Our design office analyses your requirements and sends you a bespoke commercial proposal within 4 to 8 working hours.

Get a quote

Can we order a ruler with a non-standard graduation — for example in half-millimetres or with dimension markers specific to our process?

Yes. The graduation is entirely defined to your specification: custom pitch, partial graduation, internal dimension markers specific to your process, double-sided layout. The engraving file is produced to your brief, with no constraints tied to a commercial standard.

What is the difference between a laser-engraved stainless steel ruler and a UV-printed aluminium ruler for use in a maintenance workshop?

Laser-engraved stainless steel provides a marking recessed into the material, unaffected by solvents, oils and aggressive cleaning — it is the solution for demanding industrial environments. UV-printed aluminium suits less aggressive environments and allows colour markings, logos and pictograms to be incorporated with a broader visual finish.

Is it possible to add a logo, a workstation number or a QR code to the ruler in addition to the graduation?

Yes. Laser engraving and UV printing both allow a logo, alphanumeric code, QR code or pictogram to be added directly to the ruler. The item becomes both a measuring tool and a workstation identification support, meeting visual traceability requirements on the shop floor.

Can a custom ruler be used in an ATEX zone or in an aggressive chemical environment?

Ink-free stainless steel rulers marked by laser engraving alone are the most suitable for aggressive chemical environments and potentially explosive atmospheres. For use in ATEX zones, the compatibility of materials with the specific constraints of the site must be verified in advance with your health and safety officer.

What is the minimum order quantity for a custom engraved ruler?

Otypo works in small and medium runs. A single unit or very low quantity order is possible, whether for prototyping, replacing an existing tool or producing tooling specific to a control workstation.

Custom Engraved Rulers: a Traceability Tool as Much as a Measuring Instrument

When a Standard Ruler No Longer Meets Workshop Requirements

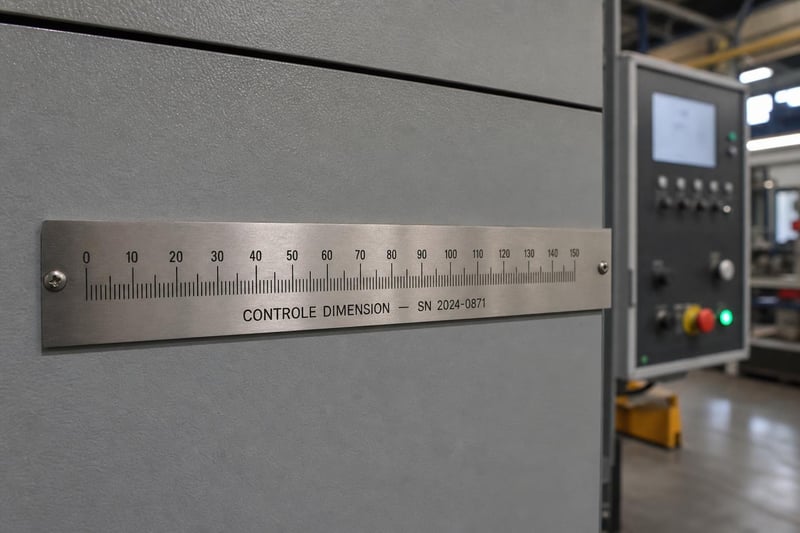

In an industrial environment, the graduation of a standard ruler rarely corresponds to the internal dimensions of a process. The custom engraved ruler addresses this gap: the graduation is defined to the workshop's specification, with no conversion and no risk of reading error. It also carries workstation identification information — number, machine code, inspection zone — engraved directly into the material for permanent legibility.

Visual Traceability and Permanent Marking

Best practice in the industrial sector requires that inspection tools carry legible, durable and unambiguous marking. A ruler whose graduation fades within a few months no longer serves its function as a reliable reference. Laser engraving on stainless steel or anodised aluminium guarantees an unalterable marking, maintenance-free and compliant with traceability obligations for measurement workstations.

Stainless Steel, Anodised Aluminium, Engineering Plastic: Choosing the Right Material

Chemical and Mechanical Resistance According to Environment

Stainless steel is the material of choice in aggressive environments: resistance to solvents, oils, strong cleaning agents and frequent splashing. It is the reference for food and beverage, pharmaceutical, energy and petrochemical sectors. Anodised aluminium offers lightness and corrosion protection for everyday workshop use. Engineering plastic is suited to protected indoor environments where colour and visibility are the priority.

Compatibility with Marking Processes

Each material guides the choice of process. Stainless steel lends itself to laser engraving alone — no ink, no risk of delamination — making it the reference solution for regulated environments and zones with chemical constraints. Aluminium accepts laser engraving, CNC milling and UV printing depending on the desired finish. Engineering plastic is primarily associated with UV printing for colour markings.

Sectors and Use Cases for Custom Industrial Rulers

From the Production Line to Field Maintenance

In manufacturing industry, the custom graduated ruler eliminates reading errors at dimensional inspection workstations. In energy and petrochemical maintenance, a laser-engraved stainless steel ruler withstands aggressive cleaning without loss of legibility. In food and beverage and pharmaceutical sectors, resistance to disinfectants is a non-negotiable requirement. In construction and transport, the custom ruler serves as a marking reference before cutting on metal, plastic or composite panel.

Selection Criteria Before Ordering a Custom Engraved Ruler

What to Specify for an Accurate Quote

Before placing an order, several parameters must be defined: the material according to the environment of use, the type of graduation (standard, partial, internal dimensions), the preferred marking process, and the information to be incorporated beyond the graduation — logo, workstation code, QR code, pictogram. The conditions of use — chemical exposure, cleaning frequency, regulated zone constraints — directly inform the choice of material and process.

Otypo Expertise in Functional Industrial Marking

We regularly find that requirements for custom industrial rulers arise from concrete situations: a generic tool whose marking has faded, a graduation that does not match internal dimensions and generates inspection errors, a measurement workstation with no visual identification. Having supported professionals across a range of sectors — maintenance, quality assurance, design engineering — in defining their graduated marking tools, we know that marking durability and graduation precision are the two criteria that admit no compromise in an industrial environment.
